Polyester Resin Guide Rings

Polyester Resin Guide Rings

PFC-22

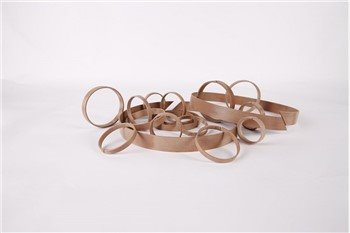

Kintowe polyester resin guide rings have superior wear resistance and almost no water swell, compares to metallic material, good elastic deformation allows it operating well under high loading. It is ideal for underwater operation (even in sea water) and offers maintenance-free solutions for special equipments.
Send Inquiry
Description

Our polyester resin wear/ guide rings are made from round polyester resin tubes, which is composed of specialty synthetic fiber, reinforced polyester resin, solid lubricants and other ingredients.

Product parameter

Color

Black

Material

Polyester resin reinforced with synthetic fiber(PFC-22)

Density

1.2-1.4g/cm³

0.043-0.051lb/in³

Tensile Strength

60MPa

8700PSI

Ultimate Compressive Strength

330MPa

47850PSI

Impact Strength

105 J/m

Rockwell Hardness

95HRM

Coefficient of friction

0.13-0.16(Dry)
0.07-0.11(Oil)

Temperature

-40° to 130° C

-104° F to 266° F

Product application

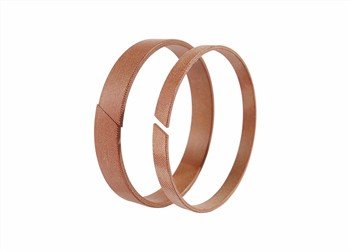

Wear/guide Rings have the task of guiding the rods and pistons of hydraulic cylinders preventing direct metallic contact with the cylinder housing. Kintowe guide rings are supplied to like SANY, Hengli, Liugong etc, our polyester resin material have got the DNV certificate.

1

Product details

Machining Tolerances

Height: 0/-0.30

Thickness: 0/-0.05

Outer diameter(OD): ±0.1

Inner diameter(ID): ±0.1

Cut gap could be in angle cut, butt cut, step cut

Outer diameter（OD）

≤100

100＜OD＜200

200≤OD＜400

400≤OD＜600

Cut gap

2

3

4

5

Limit deviation

±1

±1

±1

±1

Product Qualification

2

Piston guide rings

OD x ID x H

OD x ID x H

OD x ID x H

OD x ID x H

16 x 11 x 5.6

50 x 45 x 5.6

75 x 70 x 5.6

120 x 114 x 13

16 x 12.9 x 4

50 x 45 x 6.3

75 x 70 x 9.7

120 x 114 x 20

50 x 45 x 9.7

120 x 114 x 30

18 x 13 x 5.6

50 x 46 x 12

80 x 72 x 12

120 x 114 x 40

18 x 14.9 x 4

50 x 46.9 x 4

80 x 74 x 13

120 x 115 x 9.7

80 x 74 x 20

20 x 15 x 5.6

55 x 50 x 4

80 x 74 x 25

125 x 119 x 13

20 x 16.9 x 4

55 x 50 x 5.6

125 x 119 x 15

55 x 50 x 9.7

80 x 75 x 5.6

125 x 119 x 20

25 x 20 x 5.6

55 x 50 x 25

80 x 75 x 9.7

125 x 119 x25

25 x 21.9 x 4

80 x 75 x 15

125 x 119 x 30

60 x 54 x 10

125 x 120 x 9.7

30 x 24 x 10

60 x 54 x 13

85 x 79 x 30

30 x 25 x 5.6

60 x 54 x 20

85 x 80 x 5.6

130 x 124 x 13

30 x 26.9 x 4

60 x 54 x 30

85 x 80 x 9.7

130 x 124 x 30

130 x 125 x 9.7

32 x 27 x 5.6

60 x 55 x 5.6

90 x 84 x 13

32 x 28.9 x 4

60 x 55 x 6.3

90 x 84 x 20

135 x 129 x 13

60 x 55 x 9.7

90 x 85 x 5.6

35 x 30 x 5.6

90 x 85 x 9.7

140 x 134 x 13

35 x 31.9 x 4

63 x 57 x 13

140 x 134 x 20

63 x 57 x 20

95 x 89 x 13

140 x 134 x 25

40 x 34 x 10

63 x 58 x 5.6

95 x 90 x 9.7

140 x 134 x 30

40 x 35 x 5.6

63 x 58 x 6.3

140 x 135 x 9.7

40 x 35 x 9.7

63 x 58 x 9.7

100 x 94 x 13

140 x 135 x 15

40 x 36 x 10

63 x 58 x 10

100 x 94 x 20

40 x 36.9 x 4

100 x 94 x 25

145 x 139 x 30

65 x 59 x 13

100 x 94 x 30

45 x 39 x 10

65 x 59 x 20

100 x 95 x 9.7

150 x 144 x 13

45 x 40 x 5.6

65 x 60 x 5.6

150 x 144 x 20

45 x 41 x 12

65 x 60 x 9.7

110 x 104 x 13

150 x 144 x 30

45 x 41.9 x 4

110 x 104 x 20

150 x 144 x 40

70 x 64 x 13

110 x 104 x 30

150 x 145 x 9.7

50 x 44 x 10

70 x 64 x 20

110 x 105 x 9.7

150 x 145 x 15

70 x 65 x 5.6

110 x 105 x 15

70 x 65 x 9.7

155 x 149 x 13

70 x 65 x 20

115 x 109 x 13

115 x 110 x 9.7

OD x ID x H

OD x ID x H

OD x ID x H

OD x ID x H

160 x 154 x 13

210 x 205 x 9.7

300 x 292 x 20

160 x 154 x 15

210 x 205 x 15

300 x 292 x 25

160 x 154 x 19.5

300 x 292 x 40

160 x 154 x 30

220 x 212 x 20

300 x 295 x 15

160 x 154 x 35

220 x 212 x 30

300 x 295 x 25

160 x 154 x 50

220 x 214 x 19.5

220 x 214 x 30

400 x 392 x 30

160 x 155 x 9.7

220 x 215 x 9.7

160 x 155 x 15

220 x 215 x 15

170 x 160 x 20

230 x 225 x 15

170 x 164 x 19.5

170 x 164 x 20

240 x 232 x 25

170 x 164 x 30

240 x 232 x 40

170 x 165 x 9.7

240 x 235 x 9.7

170 x 165 x 15

240 x 235 x 15

180 x 172 x 40

250 x 242 x 20

180 x 174 x 13

250 x 242 x 25

180 x 174 x 19.5

250 x 242 x 40

180 x 174 x 30

250 x 244 x 19.5

180 x 175 x 9.7

250 x 244 x 50

180 x 175 x 15

250 x 245 x 9.7

190 x 184 x 25

250 x 245 x 15

190 x 184 x 30

190 x 185 x 9.7

260 x 255 x 9.7

190 x 185 x 15

260 x 255 x 15

200 x 192 x 25

270 x 262 x 25

200 x 194 x 20

270 x 262 x 30

200 x 194 x 30

200 x 194 x 50

280 x 272 x 25

280 x 275 x 15

200 x 195 x 9.7

280 x 275 x 25

200 x 195 x 15

200 x 195 x 20

Rod guide rings

ID x OD x H

ID x OD x H

ID x OD x H

ID x OD x H

12 x 15 x 6.3

30 x 33.1 x 4

45 x 49 x 15

65 x 70 x 9.7

12 x 15.1 x4

30 x 34 x 10

45 x 50 x 5.6

65 x 71 x 13

30 x 35 x 5.6

45 x 50 x 9.7

65 x 71 x 20

14 x 17.1 x 4

45 x 51 x 13

65 x 71 x 40

32 x 35 x 5.6

45 x 51 x 20

15 x 18.1 x 4

32 x 35.1 x 4.2

45 x 51 x 40

70 x 75 x 9.7

32 x 36 x 10

70 x 76 x 13

16 x 19 x 6

32 x 36 x 15

50 x 55 x 5.6

70 x 76 x 20

16 x 19.1 x 4

32 x 36 x 20

50 x 55 x 9.7

70 x 76 x 30

16 x 20 x 10

50 x 55 x 15

70 x 76 x 40

32 x 37 x 5.6

50 x 56 x 13

70 x 76 x 50

18 x 21.1 x 4

32 x 37 x 9.7

50 x 56 x 20

32 x 38 x 10

50 x 56 x 30

75 x 80 x 9.7

20 x 23 x 10

75 x 81 x 13

20 x 23.1 x4

35 x 38 x 10

55 x 60 x 5.6

75 x 81 x 20

20 x 24 x 5.6

35 x 39 x 20

55 x 60 x 9.7

75 x 81 x 30

35 x 40 x 5.6

75 x 81 x 60

22 x 25 x 10

35 x 40 x 9.7

56 x 61 x 5.6

22 x 25.1 x 4

35 x 41 x 10

56 x 61 x 9.7

80 x 85 x 9.7

56 x 62 x 13

80 x 85 x 15

25 x 28 x 6

36 x 40 x 10

56 x 62 x 16

80 x 86 x 13

25 x 28 x 10

36 x 40 x 30

56 x 62 x 30

80 x 86 x 20

25 x 28 x 20

36 x 41 x 5.6

56 x 62 x 40

25 x 28.1 x 4

36 x 41 x 9.7

80 x 86 x 25

25 x 28.1 x 4.2

36 x 42 x 10

60 x 65 x 5.6

80 x 86 x 30

60 x 65 x 9.7

80 x 86 x 40

25 x 29 x 5.6

40 x 43 x 5.6

60 x 65 x 15

80 x 86 x 50

25 x 29 x 10

40 x 44 x 10

60 x 66 x 13

25 x 29 x 20

40 x 44 x 20

60 x 66 x 20

85 x 90 x 9.7

25 x 30 x 5.6

40 x 44 x 25

60 x 66 x 30

85 x 90 x 15

25 x 31 x 10

40 x 45 x5.6

85 x 91 x 13

40 x 45 x 9.7

63 x 68 x 5.6

85 x 91 x 20

28 x 31.1 x 4

63 x 68 x 9.7

85 x 91 x 25

28 x 32 x 10

40 x 46 x 10

63 x 68 x 15

28 x 33 x 5.6

40 x 46 x 15

63 x 69 x 13

28 x 34 x 10

40 x 46 x 20

63 x 69 x 20

40 x 46 x 25

63 x 69 x 30

ID x OD x H

ID x OD x H

ID x OD x H

90 x 95 x 9.7

125 x 131 x 13

180 x 185 x 9.7

90 x 95 x 15

125 x 131 x 30

180 x 185 x 15

90 x 96 x 13

125 x 131 x 40

180 x 186 x 19.5

90 x 96 x 20

125 x 131 x 50

90 x 96 x 30

195 x 203 x 25

90 x 96 x 40

125 x 133 x 20

125 x 133 x 30

200 x 205 x 15

95 x 100 x 9.7

125 x 133 x 45

200 x 205 x 25

95 x 100 x 15

125 x 133 x 60

220 x 218 x 25

100 x 105 x 9.7

127 x 133 x 13

100 x 105 x 15

220 x 225 x 15

130 x 135 x 9.7

220 x 225 x 25

100 x 106 x 13

130 x 135 x 15

220 x 228 x 25

100 x 106 x 20

100 x 106 x 25

135 x 141 x 90

235 x 243 x 30

100 x 106 x 30

100 x 106 x 40

140 x 145 x 9.7

250 x 255 x 15

100 x 106 x 50

140 x 145 x 15

250 x 255 x 25

105 x 111 x 20

140 x 146 x 13

255 x 263 x 25

140 x 146 x 20

110 x 115 x 9.7

140 x 146 x 25

264 x 272 x 24

110 x 115 x 15

140 x 146 x 40

110 x 116 x 13

140 x148 x 20

305 x 313 x 25

110 x 116 x 20

110 x 116 x 30

150 x 155 x 9.7

365 x 373 x 35

150 x 155 x 15

115 x 121 x 20

150 x 156 x 19.5

150 x 156 x 30

120 x 125 x 9.7

150 x 158 x 20

120 x 125 x 15

120 x 126 x 40

160 x 165 x 9.7

120 x 126 x 50

160 x 165 x 15

160 x 166 x 30

125 x 130 x 9.7

160 x 168 x 30

125 x 130 x 15

160 x 168 x 40
