Piston seals ensure fluid or other media does not by-pass the piston as the system pressure pushes the piston down the cylinder during a pressure cycle.
Piston seals are dynamic seals, typically single-acting (pressure acting on one side only) and double-acting (pressure acting on both sides) seals.
Rod seals are considered the most critical element of a cylinder sealing system. They prevent the leakage of fluid from within a hydraulic cylinder to the outside as the rod cycles back and forth (dynamic pressure sealing). Rod seals work together with wiper seals to protect a hydraulic system against external contaminants such as dirt and outside weather conditions.Rod seals are static seals installed in the glands or housings. They maintain a seal with the piston rod in dynamic motion.

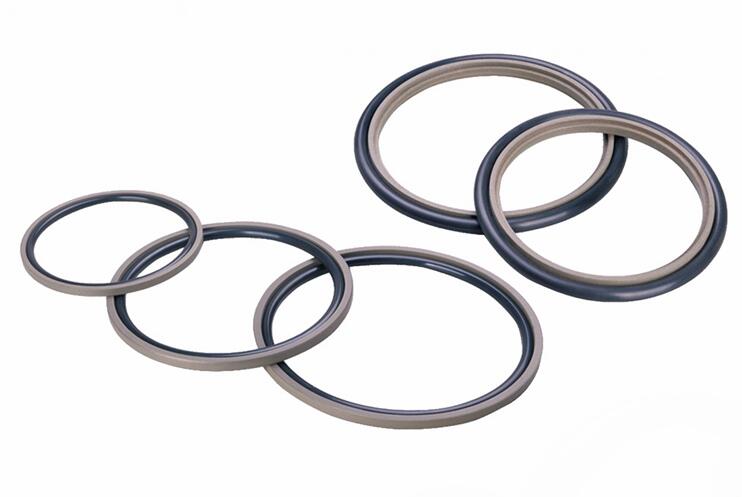

Rod and piston seals

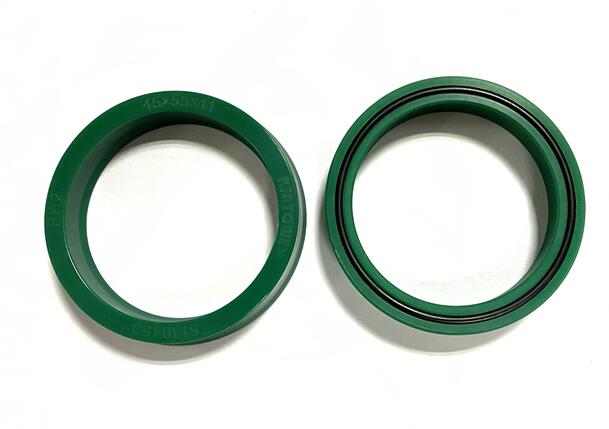

K513
|
Operating conditions |
||
|
Maximum speed |
≤1.0m/s |
|
|
Temperature range |
-45℃+110℃ |
|
|
Maximum pressure |
≤400bar |
|
|
|
|
|
|
Surface roughness |
μmRa |
μmRt |
|
Dynamic sealing face ød1 |
0.1＜＞0.4 |
4 max |
|
Static sealing face øD1 |
1.6 max |
10 max |
|
Static housing faces L1 |
3.2 max |
16 max |

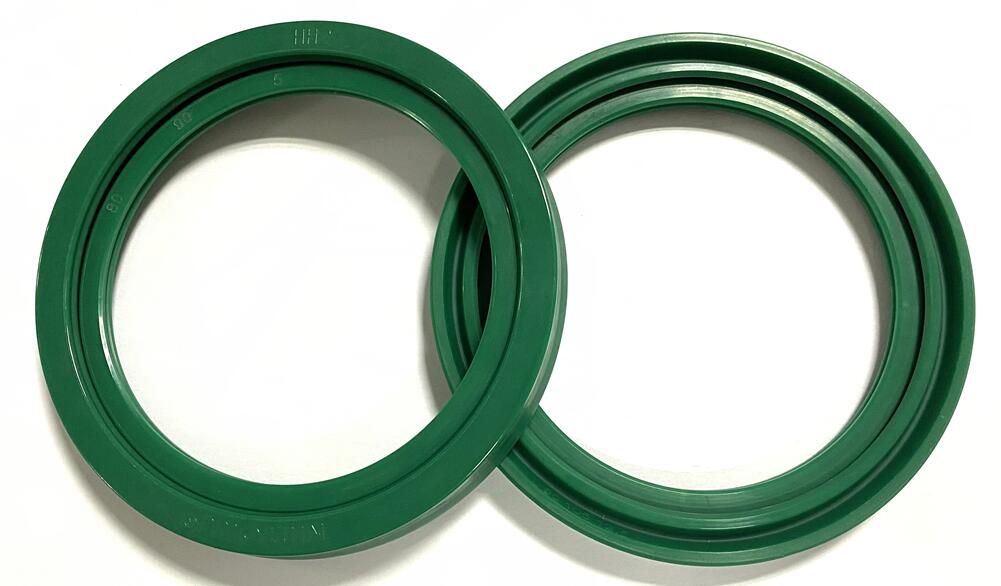

K605
Kintowe K605 is an asymmetric seal offering superlative dry rod sealing for light and medium duty applications. The design of the K605 is based on Hallite 605, Parker BS and other major sealing companies in the market.

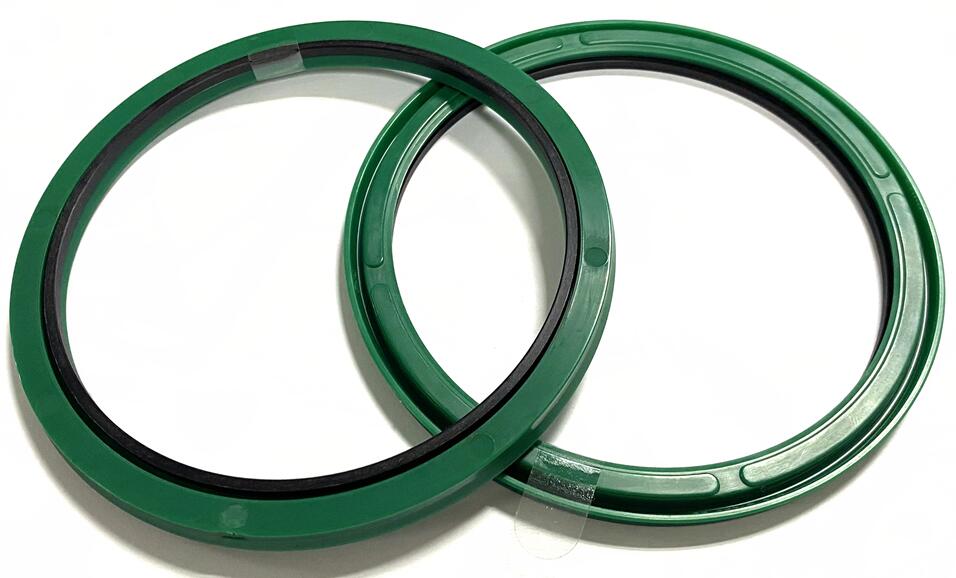

K660
Kintowe K660 PU buffer seal rings are developed to work in conjunction with high performance rod seals. It is interchangeable with common PTFE buffer seal housings.

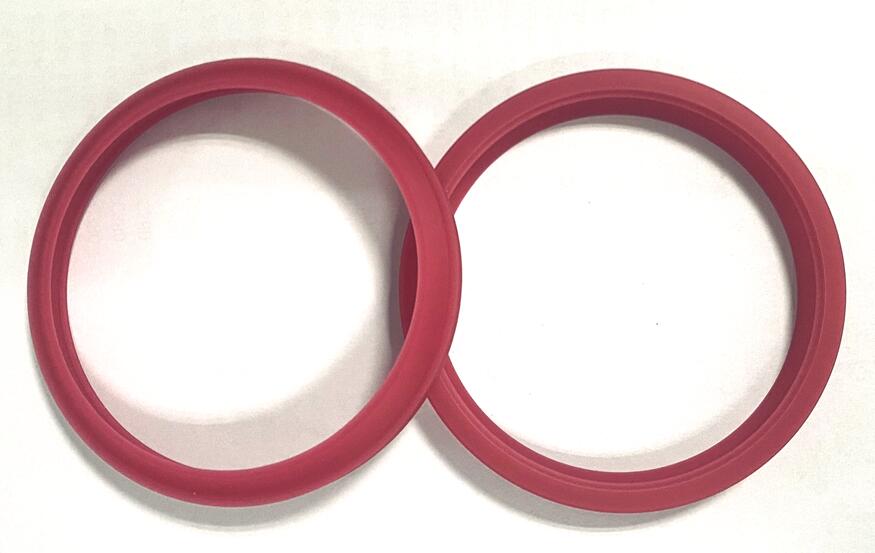

K834

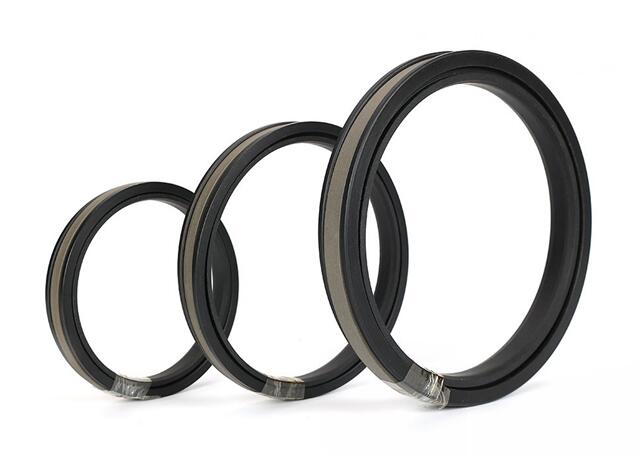

K730
Kintowe K730 polyurethane piston seal is a top of the range double acting piston seal designed for long arm mining hydraulic supporter.
It is constructed with a tough wear resistant thermoplastic polyester(TPE) face, which is loaded by a profiled nitrile energizer. Material options can be provided for the sealing face, including lubricated polyester and PTFE, All designs have rectangular polyacetal anti-extrusion rings. The TPE face material is suitable for both roller-burnished and honed tubing.

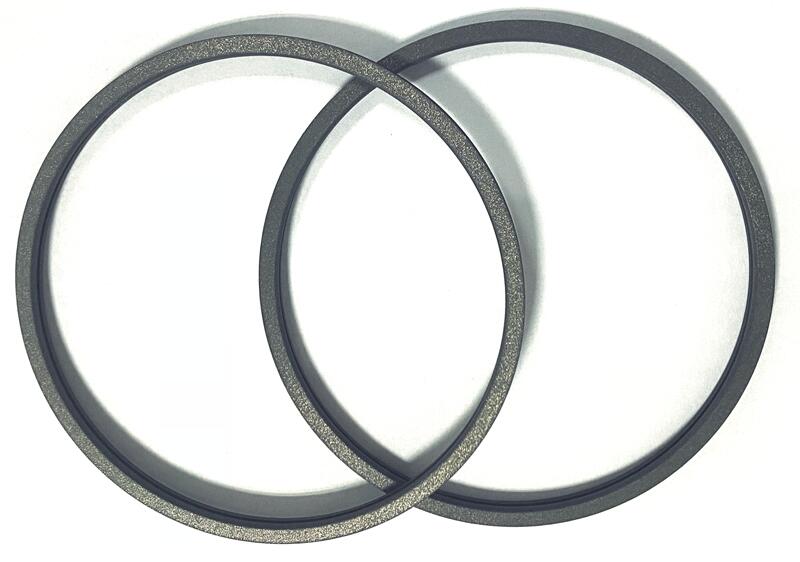

DF310
Kintowe DF310 swivel pressure seal is designed specifically for use in hydraulic swivel joints . The seal assembly consists of a filled PTFE seal ring energized by an NBR O-ring. For aggressive media an FKM O-ring can be substituted.
SPGW Compact seals
Kintowe piston compact seals have the properties of in low coefficient, excellent extrusion resistance even during pressure peaks, good abrasion resistance, increase in extrusion gaps to a certain extent.
Dust rings
Dust ring is used in combination with piston seals and anti-wear rings. This product is used in combination with anti-wear and piston ring seals to prevent cylinder oil from mixing with foreign particles, resulting in seal damage and a long service life.
Back-up rings
Bronze filled PTFE back-up rings are mainly to fill the cylinder, hydraulic system without losing its sealing function, can effectively prevent the O-ring "extrusion" phenomenon, improving its use pressure.

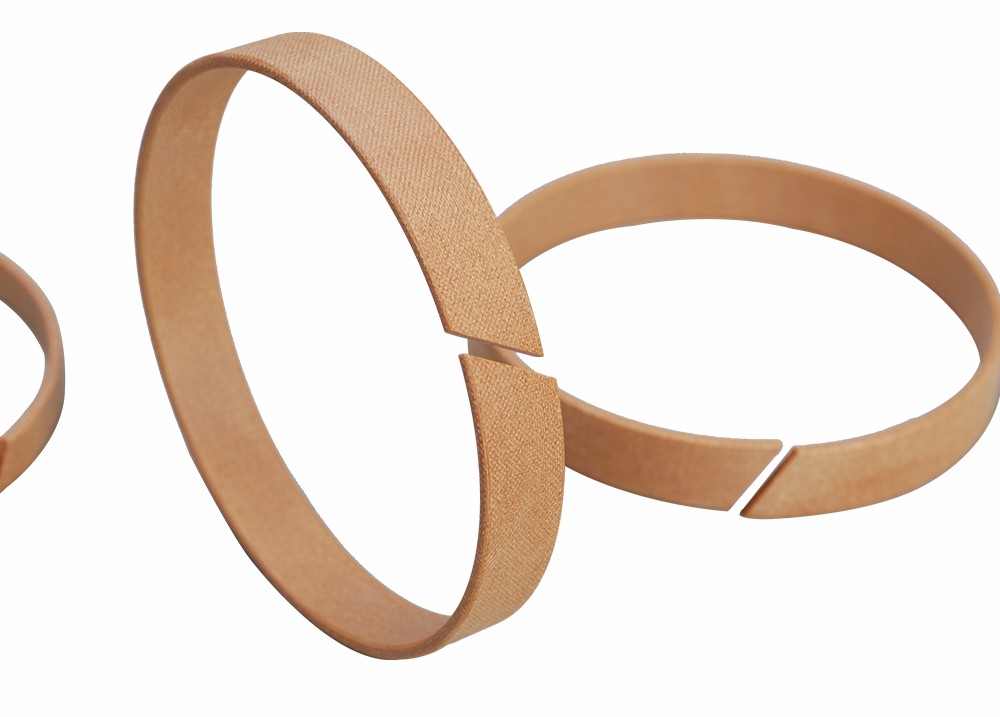

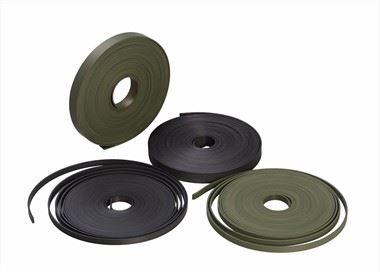

Hydraulic wear rings

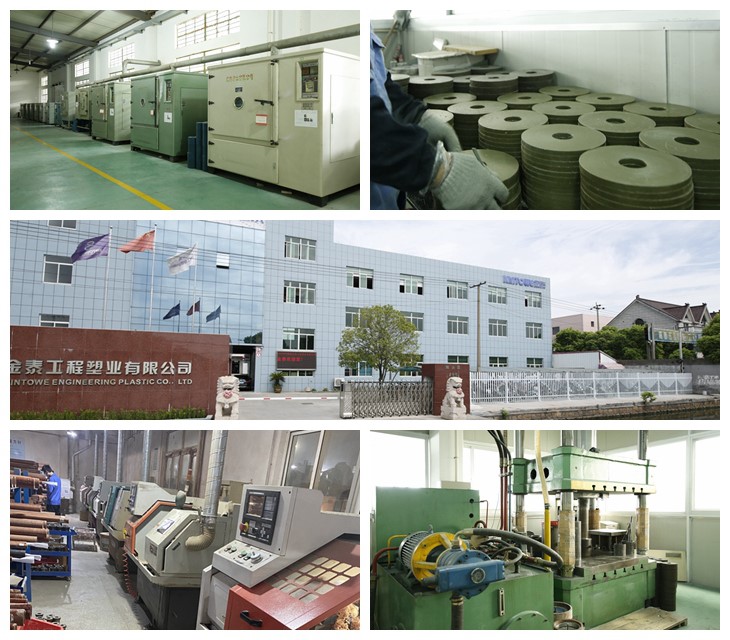

Manufacturing

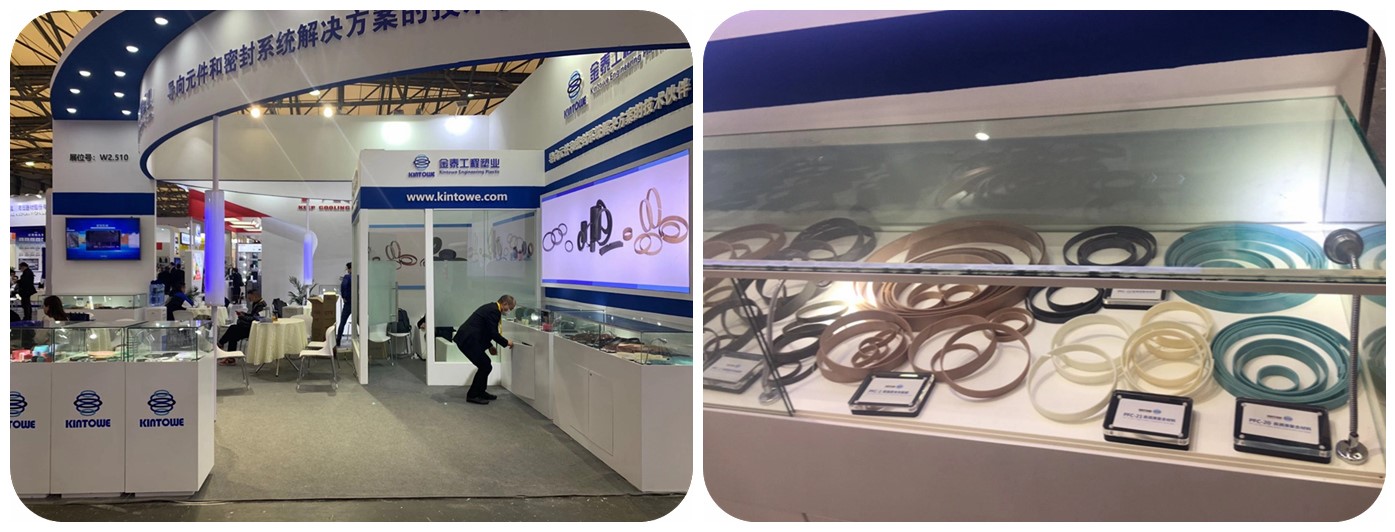

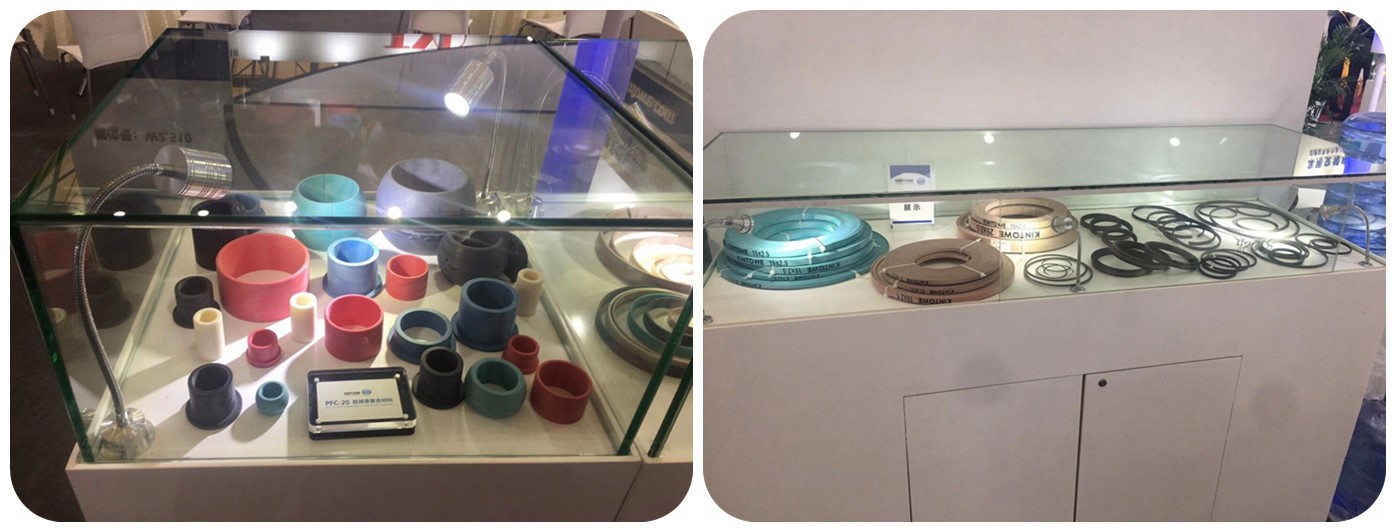

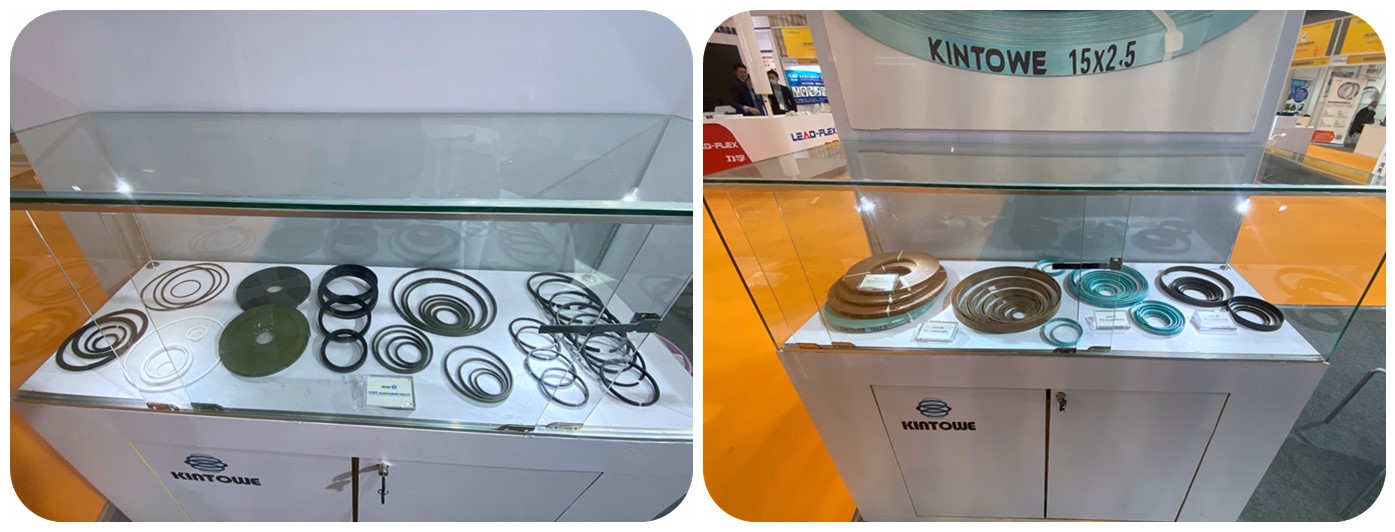

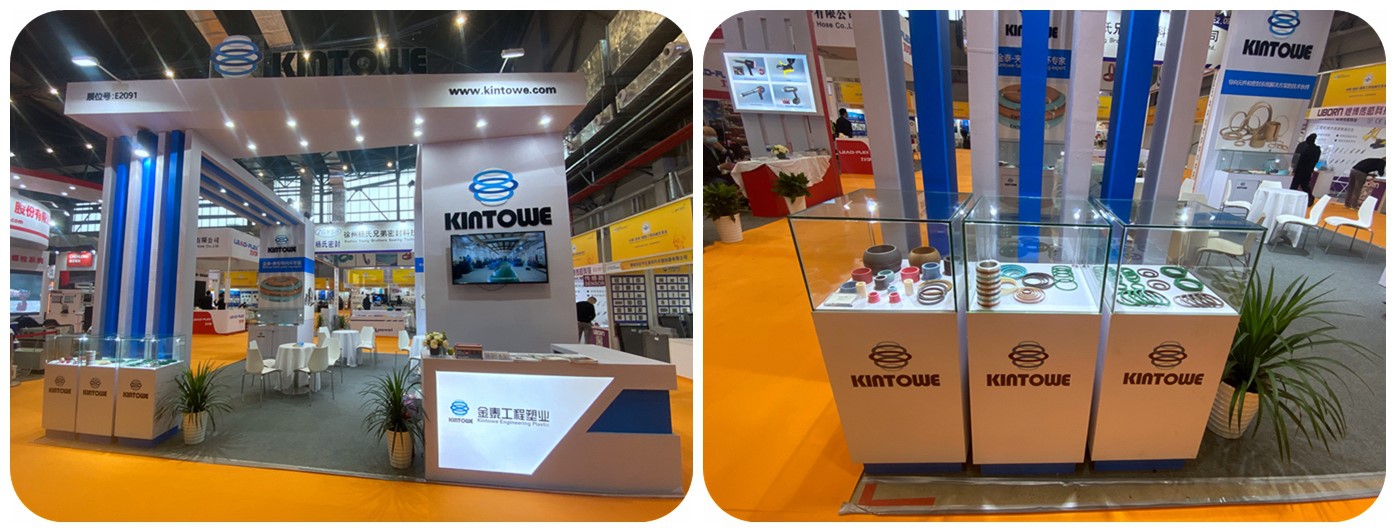

Exhibitions
Delivery
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2. How can I get the price?
A: We usually quote within 24 hours after we get your inquiry (Except weekend and holidays).
Q3: Can you provide samples? Is it free or extra?
A: Yes, we can supply the sample for free. Freight charges can be negotiated.
Q4: What is your lead time?
A: It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q5: What are your payment terms?
A: 30% T/T in advance, balance before shipment.
Q6: Could you supply solutions to us?
A: Sure we can.
Q7: Do you have a minimum order requirement?
A: Small trial order is acceptable
Q8: What's your products workmanship, machining seal or molded seal?
A: Machining seals and molded seals.
Q9: What is the shipping method??
A: It could be shipped by sea, by air or by expresses (EMS, UPS, DHL, TNT, FEDEX and etc).Please confirm with us before placing orders.
