The phenolic resin fabric- reinforced guide tape provides accurate guidance for the piston and rod moving in the hydraulic cylinder and can absorb the radial force generated at any time. At the same time, the guide belt prevents metal contact of the sliding parts in the hydraulic cylinder, that is, between the piston and the cylinder block or between the piston rod and the cylinder head.
The advantages of phenolic resin fabric guide tape:
- High load capacity, avoiding metal contacts
- Good heat resistance, wear resistance, long life
- Low friction, good dry running characteristics
- Absorbing lateral load, can suppress mechanical vibration
-Low water absorption
-Easy installation
Tecenical parameters:
Type: PFC-3T
Color: Light yellow
Density: 1.2-1.4 g/cm³
Tensile strength: 40MPa
Ultimate compressive strength: 320MPa
Impact strength: 210J/m
Rockwell Hardness: 80HRM
Coefficient of friction: 0.20-0.40 dry, 0.08-0.12 oil
Working temperature: -40~+130℃

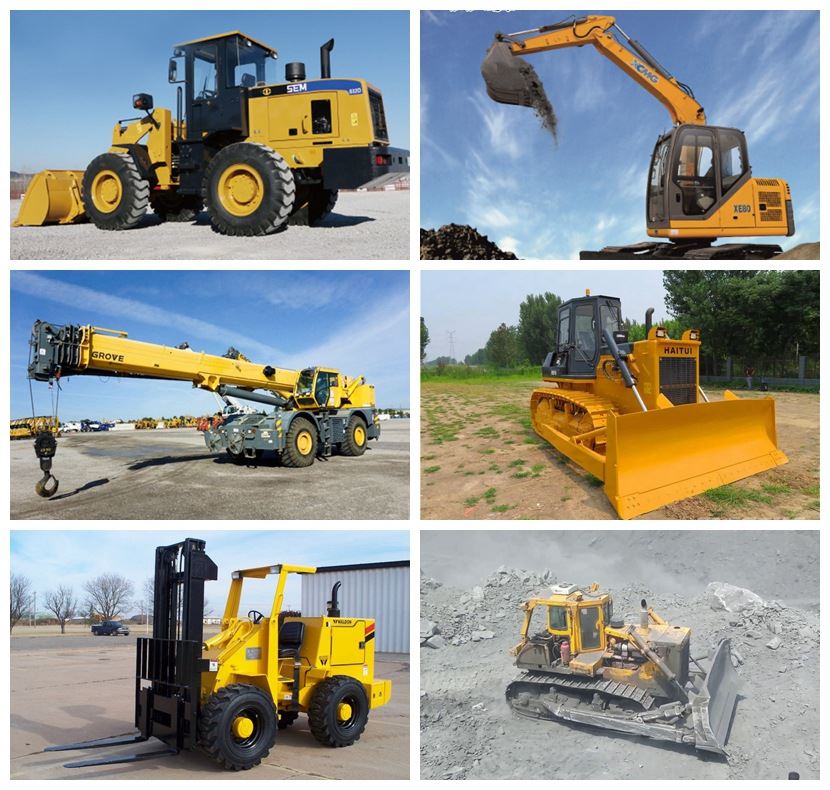

Phenolic resin fabric guide belt is widely used in hydraulic and other reciprocating, rotation, swing system, suitable for heavy duty and radial force applications, especially in heavy duty, high frequency, long stroke, large piston or piston rod gap and high temperature occasions，such as used in bulldozers, excavators, forging pressure, ceramic brick press, rolling machine, metallurgical machinery, forestry machinery, construction machinery, shipbuilding machinery, hoist and machine tools, etc.
