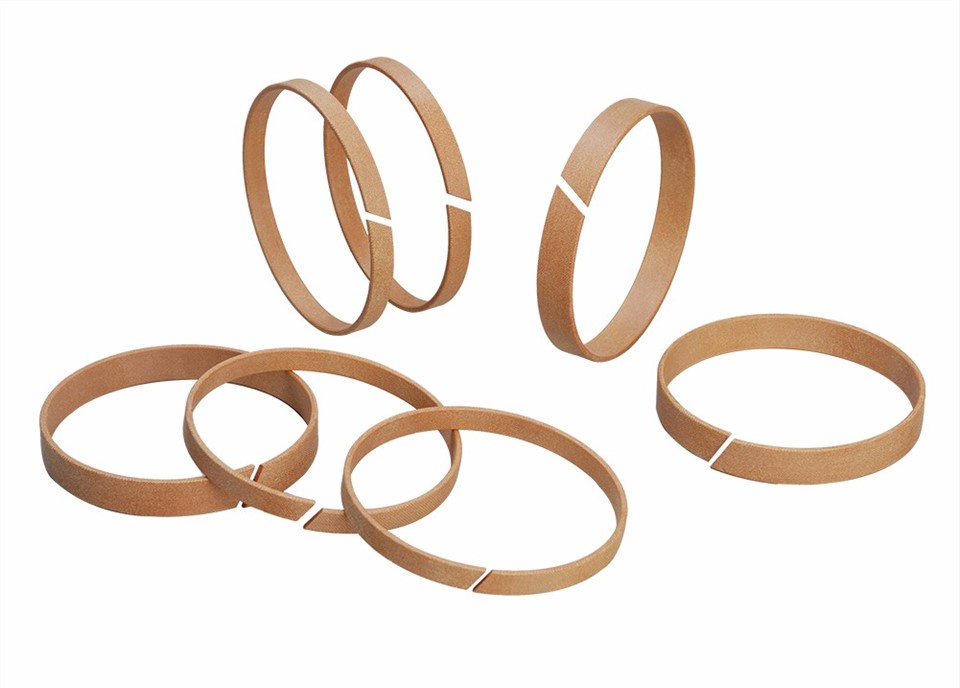

Wear Rings for Hydraulic Cylinders

Wear Rings for Hydraulic Cylinders

PFC-3
Kintowe wear rings have the advantages of good wear resistance, high load sustainability, excellent dimensional stability, flexibility and shock resistance. Products features could be compared with KT200, customers like SANY, Hengli, Liugong, Lonking etc.
Send Inquiry
Description

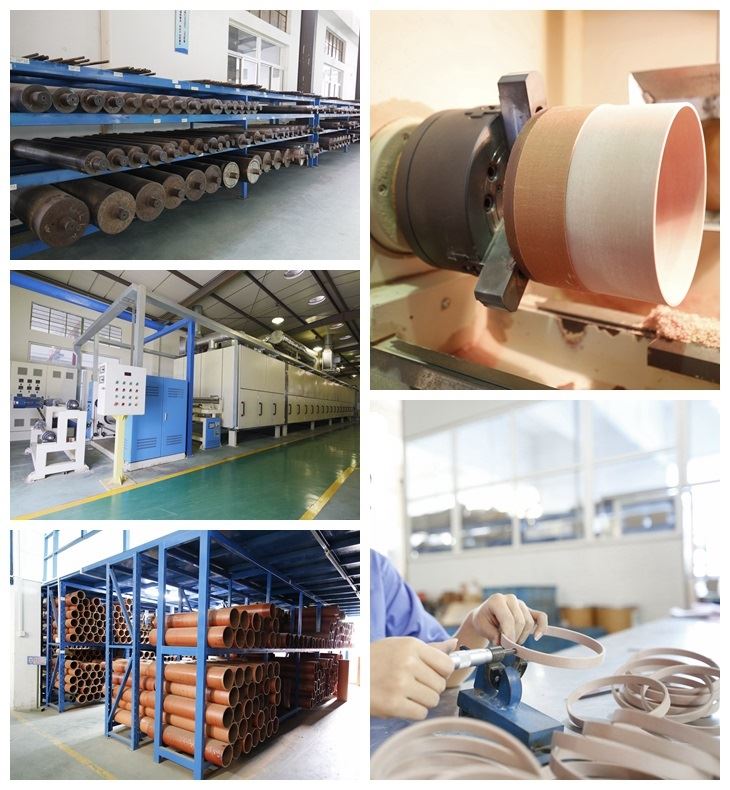

Our wear rings are made from round phenolic resin tubes, which is a high-strength laminated material based upon the thermosetting phenolic resin reinforced with high quality polyester fiber and finally finished with heat solidifying process under certain pressure and temperature.

Product parameter

Color

Light yellow to brown

Material

Phenolic resin reinforced with polyester fiber(PFC-3)

Density

1.2-1.4g/cm³

0.043-0.051lb/in³

Tensile Strength

40MPa

5800PSI

Ultimate Compressive Strength

320MPa

46400PSI

Impact Strength

210 J/m

Rockwell Hardness

80HRM

Coefficient of friction

0.20-0.40(Dry)
0.08-0.12(Oil)

Temperature

-40° to 130° C

-104° F to 266° F

Product application

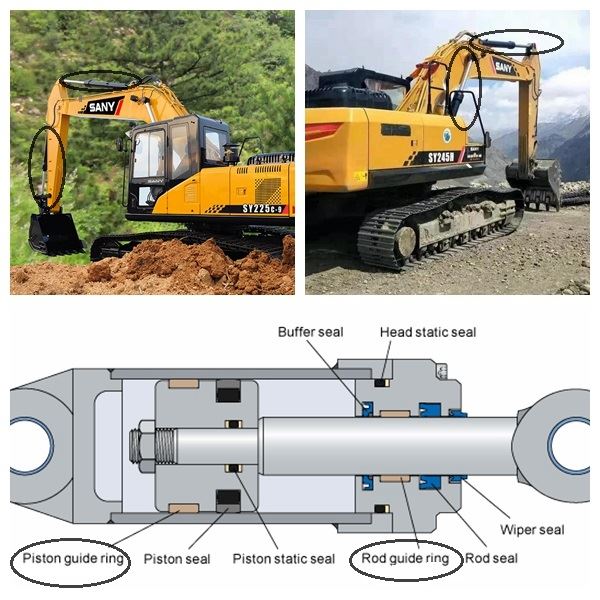

Wear rings and guide rings of hydraulic cylinders which are an essential component in a variety of equipments and applications. Kintowe material is suitable for making orientating and supporting ring of high pressure cylinders, (like those in excavators, pilling machineries, mining machineries etc).

1

Product details

Machining Tolerances

Height: 0/-0.30

Thickness: 0/-0.05

Outer diameter(OD): ±0.1

Inner diameter(ID): ±0.1

Cut gap could be in angle cut, butt cut, step cut

Outer diameter（OD）

≤100

100＜OD＜200

200≤OD＜400

400≤OD＜600

Cut gap

2

3

4

5

Limit deviation

±1

±1

±1

±1

Product Qualification

2

Piston guide rings

OD x ID x H

OD x ID x H

OD x ID x H

OD x ID x H

16 x 11 x 5.6

50 x 45 x 5.6

75 x 70 x 5.6

120 x 114 x 13

16 x 12.9 x 4

50 x 45 x 6.3

75 x 70 x 9.7

120 x 114 x 20

50 x 45 x 9.7

120 x 114 x 30

18 x 13 x 5.6

50 x 46 x 12

80 x 72 x 12

120 x 114 x 40

18 x 14.9 x 4

50 x 46.9 x 4

80 x 74 x 13

120 x 115 x 9.7

80 x 74 x 20

20 x 15 x 5.6

55 x 50 x 4

80 x 74 x 25

125 x 119 x 13

20 x 16.9 x 4

55 x 50 x 5.6

125 x 119 x 15

55 x 50 x 9.7

80 x 75 x 5.6

125 x 119 x 20

25 x 20 x 5.6

55 x 50 x 25

80 x 75 x 9.7

125 x 119 x25

25 x 21.9 x 4

80 x 75 x 15

125 x 119 x 30

60 x 54 x 10

125 x 120 x 9.7

30 x 24 x 10

60 x 54 x 13

85 x 79 x 30

30 x 25 x 5.6

60 x 54 x 20

85 x 80 x 5.6

130 x 124 x 13

30 x 26.9 x 4

60 x 54 x 30

85 x 80 x 9.7

130 x 124 x 30

130 x 125 x 9.7

32 x 27 x 5.6

60 x 55 x 5.6

90 x 84 x 13

32 x 28.9 x 4

60 x 55 x 6.3

90 x 84 x 20

135 x 129 x 13

60 x 55 x 9.7

90 x 85 x 5.6

35 x 30 x 5.6

90 x 85 x 9.7

140 x 134 x 13

35 x 31.9 x 4

63 x 57 x 13

140 x 134 x 20

63 x 57 x 20

95 x 89 x 13

140 x 134 x 25

40 x 34 x 10

63 x 58 x 5.6

95 x 90 x 9.7

140 x 134 x 30

40 x 35 x 5.6

63 x 58 x 6.3

140 x 135 x 9.7

40 x 35 x 9.7

63 x 58 x 9.7

100 x 94 x 13

140 x 135 x 15

40 x 36 x 10

63 x 58 x 10

100 x 94 x 20

40 x 36.9 x 4

100 x 94 x 25

145 x 139 x 30

65 x 59 x 13

100 x 94 x 30

45 x 39 x 10

65 x 59 x 20

100 x 95 x 9.7

150 x 144 x 13

45 x 40 x 5.6

65 x 60 x 5.6

150 x 144 x 20

45 x 41 x 12

65 x 60 x 9.7

110 x 104 x 13

150 x 144 x 30

45 x 41.9 x 4

110 x 104 x 20

150 x 144 x 40

70 x 64 x 13

110 x 104 x 30

150 x 145 x 9.7

50 x 44 x 10

70 x 64 x 20

110 x 105 x 9.7

150 x 145 x 15

70 x 65 x 5.6

110 x 105 x 15

70 x 65 x 9.7

155 x 149 x 13

70 x 65 x 20

115 x 109 x 13

115 x 110 x 9.7

OD x ID x H

OD x ID x H

OD x ID x H

160 x 154 x 13

210 x 205 x 9.7

300 x 292 x 20

160 x 154 x 15

210 x 205 x 15

300 x 292 x 25

160 x 154 x 19.5

300 x 292 x 40

160 x 154 x 30

220 x 212 x 20

300 x 295 x 15

160 x 154 x 35

220 x 212 x 30

300 x 295 x 25

160 x 154 x 50

220 x 214 x 19.5

220 x 214 x 30

400 x 392 x 30

160 x 155 x 9.7

220 x 215 x 9.7

160 x 155 x 15

220 x 215 x 15

170 x 160 x 20

230 x 225 x 15

170 x 164 x 19.5

170 x 164 x 20

240 x 232 x 25

170 x 164 x 30

240 x 232 x 40

170 x 165 x 9.7

240 x 235 x 9.7

170 x 165 x 15

240 x 235 x 15

180 x 172 x 40

250 x 242 x 20

180 x 174 x 13

250 x 242 x 25

180 x 174 x 19.5

250 x 242 x 40

180 x 174 x 30

250 x 244 x 19.5

180 x 175 x 9.7

250 x 244 x 50

180 x 175 x 15

250 x 245 x 9.7

190 x 184 x 25

250 x 245 x 15

190 x 184 x 30

190 x 185 x 9.7

260 x 255 x 9.7

190 x 185 x 15

260 x 255 x 15

200 x 192 x 25

270 x 262 x 25

200 x 194 x 20

270 x 262 x 30

200 x 194 x 30

200 x 194 x 50

280 x 272 x 25

280 x 275 x 15

200 x 195 x 9.7

280 x 275 x 25

200 x 195 x 15

200 x 195 x 20

Rod guide rings

ID x OD x H

ID x OD x H

ID x OD x H

ID x OD x H

12 x 15 x 6.3

30 x 33.1 x 4

45 x 49 x 15

65 x 70 x 9.7

12 x 15.1 x4

30 x 34 x 10

45 x 50 x 5.6

65 x 71 x 13

30 x 35 x 5.6

45 x 50 x 9.7

65 x 71 x 20

14 x 17.1 x 4

45 x 51 x 13

65 x 71 x 40

32 x 35 x 5.6

45 x 51 x 20

15 x 18.1 x 4

32 x 35.1 x 4.2

45 x 51 x 40

70 x 75 x 9.7

32 x 36 x 10

70 x 76 x 13

16 x 19 x 6

32 x 36 x 15

50 x 55 x 5.6

70 x 76 x 20

16 x 19.1 x 4

32 x 36 x 20

50 x 55 x 9.7

70 x 76 x 30

16 x 20 x 10

50 x 55 x 15

70 x 76 x 40

32 x 37 x 5.6

50 x 56 x 13

70 x 76 x 50

18 x 21.1 x 4

32 x 37 x 9.7

50 x 56 x 20

32 x 38 x 10

50 x 56 x 30

75 x 80 x 9.7

20 x 23 x 10

75 x 81 x 13

20 x 23.1 x4

35 x 38 x 10

55 x 60 x 5.6

75 x 81 x 20

20 x 24 x 5.6

35 x 39 x 20

55 x 60 x 9.7

75 x 81 x 30

35 x 40 x 5.6

75 x 81 x 60

22 x 25 x 10

35 x 40 x 9.7

56 x 61 x 5.6

22 x 25.1 x 4

35 x 41 x 10

56 x 61 x 9.7

80 x 85 x 9.7

56 x 62 x 13

80 x 85 x 15

25 x 28 x 6

36 x 40 x 10

56 x 62 x 16

80 x 86 x 13

25 x 28 x 10

36 x 40 x 30

56 x 62 x 30

80 x 86 x 20

25 x 28 x 20

36 x 41 x 5.6

56 x 62 x 40

25 x 28.1 x 4

36 x 41 x 9.7

80 x 86 x 25

25 x 28.1 x 4.2

36 x 42 x 10

60 x 65 x 5.6

80 x 86 x 30

60 x 65 x 9.7

80 x 86 x 40

25 x 29 x 5.6

40 x 43 x 5.6

60 x 65 x 15

80 x 86 x 50

25 x 29 x 10

40 x 44 x 10

60 x 66 x 13

25 x 29 x 20

40 x 44 x 20

60 x 66 x 20

85 x 90 x 9.7

25 x 30 x 5.6

40 x 44 x 25

60 x 66 x 30

85 x 90 x 15

25 x 31 x 10

40 x 45 x5.6

85 x 91 x 13

40 x 45 x 9.7

63 x 68 x 5.6

85 x 91 x 20

28 x 31.1 x 4

63 x 68 x 9.7

85 x 91 x 25

28 x 32 x 10

40 x 46 x 10

63 x 68 x 15

28 x 33 x 5.6

40 x 46 x 15

63 x 69 x 13

28 x 34 x 10

40 x 46 x 20

63 x 69 x 20

40 x 46 x 25

63 x 69 x 30

ID x OD x H

ID x OD x H

ID x OD x H

90 x 95 x 9.7

125 x 131 x 13

180 x 185 x 9.7

90 x 95 x 15

125 x 131 x 30

180 x 185 x 15

90 x 96 x 13

125 x 131 x 40

180 x 186 x 19.5

90 x 96 x 20

125 x 131 x 50

90 x 96 x 30

195 x 203 x 25

90 x 96 x 40

125 x 133 x 20

125 x 133 x 30

200 x 205 x 15

95 x 100 x 9.7

125 x 133 x 45

200 x 205 x 25

95 x 100 x 15

125 x 133 x 60

220 x 218 x 25

100 x 105 x 9.7

127 x 133 x 13

100 x 105 x 15

220 x 225 x 15

130 x 135 x 9.7

220 x 225 x 25

100 x 106 x 13

130 x 135 x 15

220 x 228 x 25

100 x 106 x 20

100 x 106 x 25

135 x 141 x 90

235 x 243 x 30

100 x 106 x 30

100 x 106 x 40

140 x 145 x 9.7

250 x 255 x 15

100 x 106 x 50

140 x 145 x 15

250 x 255 x 25

105 x 111 x 20

140 x 146 x 13

255 x 263 x 25

140 x 146 x 20

110 x 115 x 9.7

140 x 146 x 25

264 x 272 x 24

110 x 115 x 15

140 x 146 x 40

110 x 116 x 13

140 x148 x 20

305 x 313 x 25

110 x 116 x 20

110 x 116 x 30

150 x 155 x 9.7

365 x 373 x 35

150 x 155 x 15

115 x 121 x 20

150 x 156 x 19.5

150 x 156 x 30

120 x 125 x 9.7

150 x 158 x 20

120 x 125 x 15

120 x 126 x 40

160 x 165 x 9.7

120 x 126 x 50

160 x 165 x 15

160 x 166 x 30

125 x 130 x 9.7

160 x 168 x 30

125 x 130 x 15

160 x 168 x 40
