The purpose of a wear ring, wear band, or guide band is to absorb the side load forces applied by the rod and/or piston and to stop metal-on-metal contact from harming or scoring the sliding surfaces. Any hydraulic sealing system's performance is maximized and early system failure is prevented by properly working wear rings or wear bands.

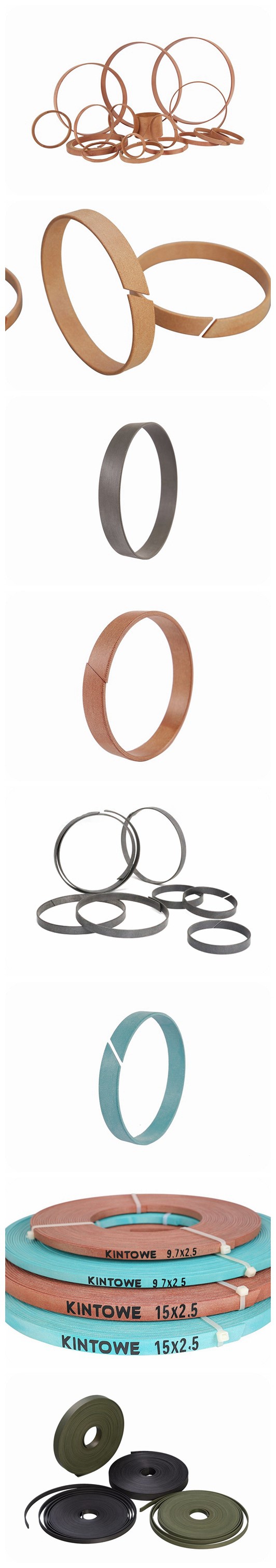

Kintowe designed wear rings make them suitable for use in both piston and rod seal applications. Wear rings are available in a wide variety of materials and styles.
|
Part NO. |
Material |
|
PFC-1 wear ring |
Phenolic resin + cotton fabric |
|
PFC-2 wear ring |
Phenolic resin + cotton fabric + graphige |
|
PFC-3 wear ring |
Phenolic resin + polyester |
|
PFC-5 wear ring |
Phenolic resin + cotton fabric + MoS2 |
|
PFC-6 wear rings |
Phenolic resin + synthetic fiber |
|
PFC-7 wear ring |
Phenolic resin + ultra strong fiber |
|
PFC-20 wear ring |
Polyester resin + synthetic fiber |
|
PFC-3T wear strips |
Same with PFC-3 |
|
PFC-20T wear strips |
Same with PFC-20 |
|
DFG-120 wear strips |
PTFE + bronze + graphite etc |
|
DFG-130 wear strips |
PTFE + 40% bronze |
Wear bands must always be fitted on the lubrication (wet) side of the seal for optimal performance.
Pls contact vanessa@kintowe.com for more information.
Thank you!
