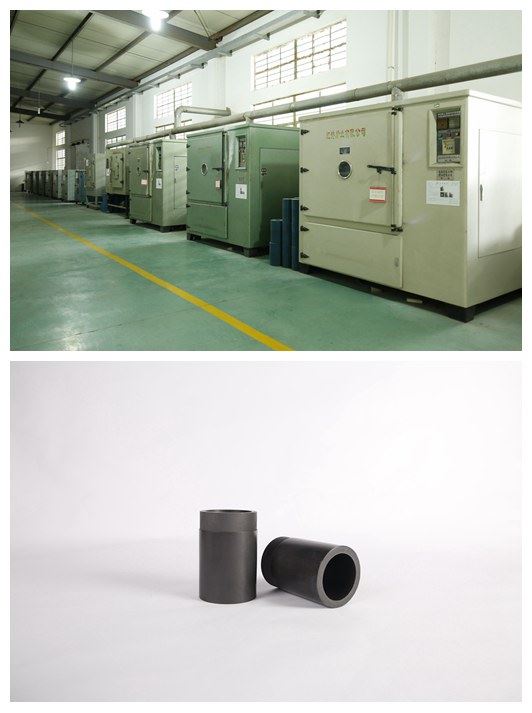

We have a unique production process and strong technical strength, with perfect testing means and perfect quality assurance system to ensure the high quality of Bearings, Piston Wear Rings, Piston Guide Rings. Our tenet is people-oriented, integrity, quality first, prevention first, safety first, create first-class. We take technology as the core, regard quality as the life, and take customers seriously, never stop seeking new, providing customers with high quality services to meet the needs of customers. Talent is the most important factor to ensure the achievement of business goals, and the process of business development is also the process of developing and optimizing talent.
Dust ring is used in combination with piston seals and anti-wear rings. This product is used in combination with anti-wear and piston ring seals to prevent cylinder oil from mixing with foreign particles, resulting in seal damage and a long service life. The piston rod seal is used in combination with a metal bushing to prevent damage to the rod due to the impurity immersion function of the PTFE. It is used to move the piston and rod in the cylinder. It has good guiding effect and can absorb radial force at any time to prevent metal-metal contact in the cylinder and reduce friction.
Product parameter
Color | Black |
Material | PTFE + Carbon fiber |
Speed | ≤1.5m/s |
Pressure | ≤60MPa |
Medium | Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others. |
Part NO. | OD*ID*Height | Part NO. | OD*ID*Height | Part NO. | OD*ID*Height | ||
1 | 20*16*3.5 | 26 | 65*57*8 | 51 | 80*75*9.5 | ||
2 | 35*30*3 | 27 | 65*57*9.5 | 52 | 85*77*4 | ||
3 | 50*42*4 | 28 | 65*60*9.5 | 53 | 85*77*6 | ||
4 | 50*42*6 | 29 | 69*65*3.6 | 54 | 85*77*8 | ||
5 | 50*42*8 | 30 | 70*62*4 | 55 | 85*77*9.5 | ||
6 | 50*42*9.5 | 31 | 70*62*6 | 56 | 85*77*10 | ||
7 | 50*42*14.8 | 32 | 70*62*8 | 57 | 85*77*14.8 | ||
8 | 55*47*4 | 33 | 70*62*9.5 | 58 | 85*80*6 | ||
9 | 55*47*5 | 34 | 70*62*12 | 59 | 85*80*8 | ||
10 | 55*47*9.5 | 35 | 70*62*14.8 | 60 | 85*80*9.5 | ||
11 | 55*50*4 | 36 | 70*65*9.5 | 61 | 85*80*20 | ||
12 | 58*50*9.5 | 37 | 75*67*4 | 62 | 90*82*4 | ||
13 | 60*52*4 | 38 | 75*67*6 | 63 | 90*82*8 | ||
14 | 60*52*6 | 39 | 75*67*8 | 64 | 90*82*9.5 | ||
15 | 60*52*8 | 40 | 75*67*9.5 | 65 | 90*82*14.8 | ||
16 | 60*52*9.5 | 41 | 75*67*12 | 66 | 90*85*6 | ||
17 | 60*52*14.8 | 42 | 75*67*14.8 | 67 | 90*85*8 | ||
18 | 60*54*12 | 43 | 75*70*9.5 | 68 | 90*85*9.5 | ||
19 | 60*55*6 | 44 | 80*72*4 | 69 | 90*85*20 | ||
20 | 60*55*8 | 45 | 80*72*6 | 70 | 95*87*6 | ||
21 | 60*55*9.5 | 46 | 80*72*8 | 71 | 95*87*8 | ||
22 | 63*55*4 | 47 | 80*72*9.5 | 72 | 95*87*9.5 | ||
23 | 63*55*8 | 48 | 80*72*12 | 73 | 95*87*14.8 | ||
24 | 63*55*9.5 | 49 | 80*72*14.8 | 74 | 95*90*8 | ||
25 | 65*57*4 | 50 | 80*75*6 | 75 | 95*90*9.5 |
Part NO. | OD*ID*Height | Part NO. | OD*ID*Height | Part NO. | OD*ID*Height | ||
76 | 95*90*14.8 | 116 | 130*122*8 | 156 | 170*162*8 | ||
77 | 100*92*6 | 117 | 130*122*9.5 | 157 | 170*162*9.5 | ||
78 | 100*92*8 | 118 | 130*122*14.8 | 158 | 170*162*14.8 | ||
79 | 100*92*9.5 | 119 | 130*125*9.5 | 159 | 170*163*9.5 | ||
80 | 100*92*14.8 | 120 | 135*127*6 | 160 | 170*165*9.5 | ||
81 | 100*95*6 | 121 | 135*127*8 | 161 | 175*167*6 | ||
82 | 100*95*9.5 | 122 | 135*127*9.5 | 162 | 175*167*8 | ||
83 | 100*95*20 | 123 | 135*127*14.8 | 163 | 175*167*9.5 | ||
84 | 105*97*6 | 124 | 135*128*6 | 164 | 175*167*14.8 | ||
85 | 105*97*8 | 125 | 135*129*14 | 165 | 180*170*9.5 | ||
86 | 105*97*9.5 | 126 | 140*132*6 | 166 | 180*172*6 | ||
87 | 105*97*14.8 | 127 | 140*132*8 | 167 | 180*172*8 | ||
88 | 105*100*6 | 128 | 140*132*9.5 | 168 | 180*172*9.5 | ||
89 | 105*100*9.5 | 129 | 140*132*14.8 | 169 | 180*172*14.8 | ||
90 | 108*100*9.5 | 130 | 140*134*22.5 | 170 | 185*177*6 | ||
91 | 110*102*6 | 131 | 140*135*8 | 171 | 185*177*8 | ||
92 | 110*102*8 | 132 | 140*135*9.5 | 172 | 185*177*9.5 | ||
93 | 110*102*9.5 | 133 | 145*137*6 | 173 | 185*177*14.8 | ||
94 | 110*102*14.8 | 134 | 145*137*8 | 174 | 190*182*6 | ||
95 | 110*105*10 | 135 | 145*137*9.5 | 175 | 190*182*8 | ||
96 | 110*105*29.6 | 136 | 145*137*14.8 | 176 | 190*182*9.5 | ||
97 | 115*107*6 | 137 | 145*140*9.5 | 177 | 190*182*14.8 | ||
98 | 115*107*8 | 138 | 150*142*6 | 178 | 195*187*6 | ||
99 | 115*107*9.5 | 139 | 150*142*8 | 179 | 195*187*8 | ||
100 | 115*107*14.8 | 140 | 150*142*9.5 | 180 | 195*187*9.5 | ||
101 | 115*110*6 | 141 | 150*142*14.8 | 181 | 195*187*14.8 | ||
102 | 118*105*5.3 | 142 | 155*147*6 | 182 | 200*192*6 | ||
103 | 120*112*6 | 143 | 155*147*8 | 183 | 200*192*8 | ||
104 | 120*112*8 | 144 | 155*147*9.5 | 184 | 200*192*9.5 | ||
105 | 120*112*9.5 | 145 | 155*147*14.8 | 185 | 200*192*14.8 | ||
106 | 120*112*14.8 | 146 | 160*152*6 | 186 | 205*197*8 | ||
107 | 120*115*8 | 147 | 160*152*8 | 187 | 205*197*9.5 | ||
108 | 120*115*9.5 | 148 | 160*152*9.5 | 188 | 210*202*8 | ||
109 | 120*115*10 | 149 | 160*152*14.8 | 189 | 210*202*9.5 | ||
110 | 125*117*6 | 150 | 165*157*6 | 190 | 215*207*8 | ||
111 | 125*117*8 | 151 | 165*157*8 | 191 | 215*207*9.5 | ||
112 | 125*117*9.5 | 152 | 165*157*9.5 | ||||
113 | 125*117*14.8 | 153 | 165*157*14.8 | ||||
114 | 125*119*13.6 | 154 | 168*160*9.5 | ||||
115 | 130*122*6 | 155 | 170*162*6 |
Product application
Excavators, standard cylinders, Mobile hydraulics, Presses
Product Qualification
We focus on the quality of our Sz/We3/Ad Profile Double Acting Dust Wiper Seal Ring, our ability to innovate and the products that can really help our customers solve their practical needs. We strive to enhance the company's competitive advantage and actively shape the company's brand image in the international market. We strive to make the best use of our people and talents, thus promoting the sustainable, rapid and efficient development of our company.
